Industrial 5.5 inch Rugged Tablets PC with Multifunctional Option Android Hardware Platform

Product Categories

Beijing Speedata Technology Co., Ltd

Contact Now

Industrial 5.5 inch Rugged Tablets PC with Multifunctional Option Android Hardware Platform

Ask Lasest Price
Brand Name :	SPEEDATA
Model Number :	KT55-S
Certification :	CE, 3C,ISO9001, IP65
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000pcs/month
Delivery Time :	one week

Add to Cart

Product Details
Company Profile

Industrial 5.5 inch Rugged Tablets PC with Multifunctional Option Android Hardware Platform

Industrial Rugged Tablet PC 5.5 inch with Multifunctional Option Android Hardware Platform

Pls directly send message to contact sales for more Information. Thannk you!

SPEEDATA SERVIDE

Free SDK Provide
Technical Support from Professional Engineer
1 year warranty or extensive warranty

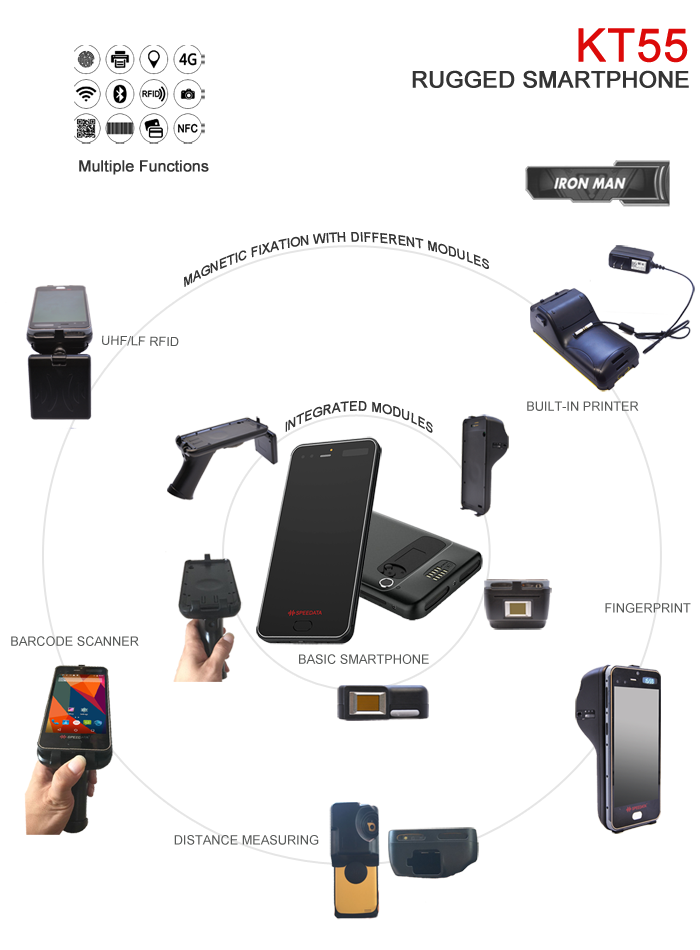

Clip device
RFID reader	option 1	LF RFID(134.2KHz, ISO11784/11785, FDX-B/HDX) - reading distance 10cm
	option 2	LF RFID(125KHz) - reading distance 10cm
	option 3	HF RFID(13.56MHz ISO 14443A/B ISO 15693)- reading distance 5cm
	option 4	R2000 UHF RFID 860-960MHz ISO18000-6C (EPC Gen2) - reading distance up to 3m-5m
IC card reader(Optional)	option	ISO7816 ID-1
Printer	option	2 inch direct thermal printer
MRZ	option	ICAO Document 9303 / E13B and OCRB fonts
Fingerprint reader	option 1	UPEK TCS1 (meet the FBI’s FIPS-201)
	option 2	UPEK TCS2SS
	option 3	Customized according to customer needs.
Free Extension		Multiple extension interface, such as RS232, GPIO, USB, SPI. You can freely design what you want.

SPECIFICATION

KT55 Android Device
OS		Android 5.1
CORE
Core	CPU	Octa-core 1.3GHz ARM® Cortex-A53
	WWLAN	FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8
	Flash ROM	16GB
	RAM	2GB DDR3
General Configuration
Display	Main Screen	5.5 inch OLED 1920*1080 FHD
Display	Sub-screen	0.91 OLED
Touch screen		Multi-point touch capacitive screen
Fingerprint		Yes
GPS		Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
Bluetooth		v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi		2.4G+5GHZ 802.11 a/b/g/n
Protection class		IP65
Drop resistance level		1.5m
Camera (Yes)	Rear camera	13MP Camera
Camera (Yes)	Front camera	5MP Camera
Keypad	Front /Side	5 side buttons

Interface	Micro-USB connector	USB2.0 OTG
	SIM card slot	1 standard SIM slot
	SIM card slot	1 Micro SIM slot
	TF card slot	Yes
	power jack	Micro-USB
	Audio Jack	Yes
External Interface	OPTION	USB, RS232, SPI, GPIO

Battery	Type	rechargeable Li-ion battery 6000mAh
	Standby Time	600hours
	Calls Time	Up to 6hours
	Charging Time	5 hours (USB charging)
Physical Characteristics	Dimension	1707913mm
Physical Characteristics	Weight	>250g with battery (according config)

Operating temperature		-20°C to 50°C / -4°F to 122°F
Storage temperature		-30°C to 70°C / -22°F to 158°F
Humidity (non-condensed)		Operating 10% to 90% / Storage 5% to 95%
Electrostatic discharge		± 15 kV air discharge, ± 8 kV contact discharge
EMC regulation		CE

OPTIONS
Appearance color	option	various color options
Wireless charging	Yes	include Wireless transmitting base.
Far Infrared Meter Reading	option	IEC62056-21(IEC1107) communication protocol
IRIS recognition	option	The recognition distance is less than 20cm
PSAM	Yes	ISO7816 (SIM card interface)
NFC	option	NFC(Compatible 13.56MHz ISO 14443A ISO15693)
Barcode scanner	option	Honeywell N6603 1D & 2D barcode scanner
