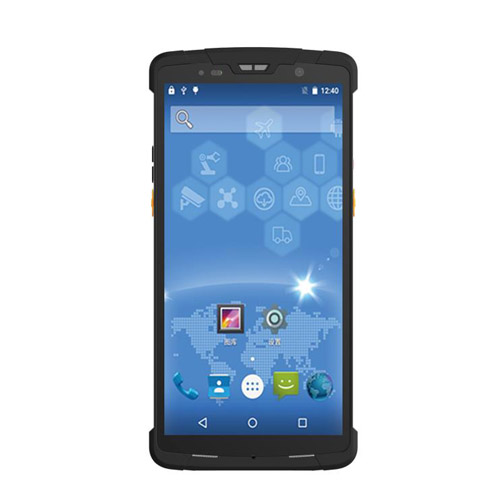

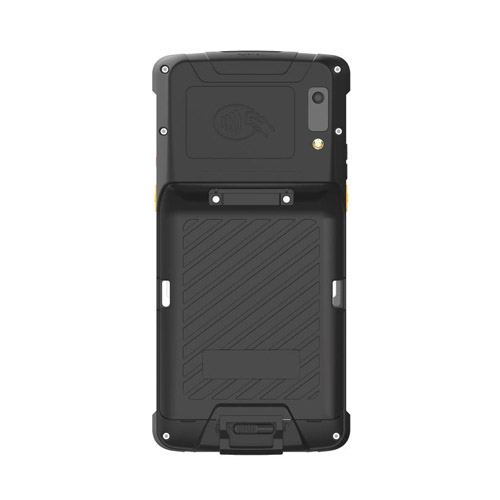

RS232 Android LF Rfid Reader 134.2mhz For Animal , container
Recognition
Features of SD60ID LF
- Built-in 134.2khz LF RFID module ,support ISO11784/11785 Animal
tags
- Support external antenna expansion, flexible application
- 6.0inch HD Touch Screen , 2160*1080 resolution ,Bring Comfortable
visual experience
- Support NFC Reader , can be used for identification and authority
management
- NewLand:CM60 1D 2D Barcode Scanner
- 6000mAh big capacity Battery ,long working time
SPECIFACTION
| Model Name | SD60 LF |
| CPU | Octa-core 2.0GHz |
| OS | Android 8.1 |
| RAM | 4GB |
| ROM | 64GB |
| Camera | Rear 13MP AF, high light LED flash,Front 5MP camera |
| Screen | 6.0”IPS highlight screen |
| Resolution | 2160*1080 |
| Touch Screen | 5-point capacitive touch screen |
| Dimension | 165.5*81.6*29.1mm |
| Weight(with battery) | 300g |
| Battery capacity | 6000mAh |
| Charging | PE fast charge,full charging time<4 hours |
| Bluetooth | BT4.1 BLE |
| Wi-Fi | IEEE 802.11 a/b/g/n 2.4G 5G dual frequency |
| WWLAN | FDD-LTE B1/B3/B5/B7/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1 |
| GPS | GPS+BD+GLONASS |
| Audio | Front dual stereo speakers, Volume 90db±3db(test distance 10cm) |
| Sensor | Gsensor, Ambient light sensor, Proximity Sensor, COMPASS |
| Extension | Micro SD (TF) card slot up to 128GB |
| External interface | 2 Nano SIM card slots
1 Micro SD card slots
USB TYPE-C
Support OTG
Fast charge 5V/9V 1.67A |
| Keypad | 2 volume buttons, 2 function buttons(1 left and 1 right), 1 power
button |
| Notification | Sound, Vbration, LED prompt |
| Working temperature | -20℃ ~ +55℃ |
| Storage temperature | -30℃ ~ +70℃ |
| Working humidity | 5%~95% |
| IP class | IP65 |
| Drop & Tumble | 6 sides can withstand the impact of a 1.5-meter drop to the
concrete floor |
| ESD | ±15kV air discharge, ±8kV contact discharge |
| Certificates | CCC ,CE,FCC |
| External antenna (optional) | work frequency 134.2KHZ Support protocol : ISO11784/11785 Animal tags |
| RFID (LF) | Work frequency 134.2khz
Support protocol : ISO11784/11785
Animal tags
Reading distance ≥7cm |
Barcode scanning
Support code system | NewLand:CM60 2D Scan engine
Support code system:EAN13, EAN8, UPCA
UPCE, Code 128, Code 39, Codabar
UCC/EAN128, RSS,ITF, ITF14, ITF6, ISSN
ISBN, Standard 25, Matrix 25,Industrial 25
Plessey, MSI Plessey, Code 11, Code 93
PDF417, QR Code, DataMatrix, AZTEC
Hanxin Code, Maxicode, Micro QR
Micro PDF417, Composite |
Company information
Advantages
1. R & D technology support
- Our R & D team have around 28 software & hardware hightech
engineers, 27% of the whole employees, who have professional
background in Electrical Engineering.
- Atthe same time, our director Mr shao and genernal manager Mr Wu
have extensive experiences in hardware development and product
management.
- since its reasonable structure and professional ability , our
products become more stable and compatible.
As expected, we have built up a strong spirit of collaboration
teamwork and gained a good reputation from our customers.
2. Strong customized capabilities
- Speedata serves wide industries and fields, such as the electric
power, mapping, egovernment, logistics, traceability management,
fixed asset management.etc. we have accumulated rich and extensive
experiences in those industries.
- we pay more attention to design personalized software and hardware
products as well as whole solutions development.
- The products will develop in the direction of the platformization
and modularization and put technology into the public platform to
simplify for its secondary development.
At the same time, we supply core board customization, sensors and
module development to combine with platform quickly to meet
customers demand.
As a OEM/ODM and R&D manufacturer, we support you:
| Completely Free SDK | Technical support for you |
| ODM/OEM according to your needs | 6 kinds of customization services |
| 13months warranty for your devices and other parts, and 6 months for the batteries | Extend warranty,it'll cost 0.5% for each per year |
| Free maintenance of the devices and part of accessories replacement in the warranty .If out of the warranty, you'll have to pay the basic cost for
them. | Various payment way including Paypal, wenstern union, TT, etc.
|
1. Samples
All the price is excluding the freight fee.
Less than 10pcs samples are applied each time for our clients, the
cost is a little bit higher than the wholesale price.
If more than 100pcs, it'll be much more cheap.the more you
order,the lower cost it'll be, and the cheaper price you'll get.
2. Quality
Color issues: All the PDA products are 100% absolutely objects photographed,but
because of the Camera-technology, Light,Pixels and other factors,
there'll be a little bit difference with the real product. Please
take the real goods for reference or make sure with our sales in
advance.
Qualifications: Our PDAs are produced according to the ISO9001 quality management
system, and all the products have passed through IP65,CCC,and ROHS.
Packages: We offer 2 different kind of packaging box. one is for KT40 with brand carton, and another is ordinary carton, in which both are special packaging materials of cardboard EPE
and stereotypes cotton to reinforce and protect PDAs.
3. Stocks and Delivery
If you want PDAs like KT40 which are always in stock,it may needs 3-5 days to delivery.we have KT40 in stock because it's a conventional
product only with 2 modulars of 1d/2d barcode scanner and NFC
reader.
If you want OEM/ODM products with particular functions, it may needs 5-10 days more to produce and delivery.
More specific details. please contact our sales.
4. Transportation
We always choose the competitive and safe shipping agent like DHL,UPS and Fedex and any other designated shipping agent by the customers.
If it goes smoothly with the customs clearance, you'll get the
goods in 3-7 days.
5. After-Sale Service
We support 13 months warranty,during this period,it's exactly FREE to replace you a quiet new device terminal if your machines have
serious irreversible functional damage.
Freight fare is half paid of the round trip by both sides. Customer pay the freight fee when
they are sending the machines to china,and we'll pay it when
returning them back to the clients.
