Android Data Collection Device Portable PDA Thermal Printer with
Barcode Scanner fingerprint
Handheld PDA Use:
We have a strong R&D team for not only hardware but also software, have developed the following solutions for our customers:
- Cold-chain logistics and transportation tracking
- Meat product tracking
- Mobile police service
- Fixed-Assets management
- Tickets checking
- Shop and supermaket payment receipt
- Member information printing
More industrial solutions of management systems as following:
- Logistics & Express
- Transportation
- Electric meter readings
- Network community management
- Storage & Distribution
- Petrochemical inspection
- Surveying and mapping
- Agriculture
- Water conservation
- Animal tracking & research
- Retail chain
- Fixed-assets management
Values for Clients:
1. Experienced
More than 8 years experience in production(OEM/ODM included),
R&D and overseas sales, we have been a good manufacturer and
business partner.
2. High Quality Products
High protection grade: IP65 and 1.5M drop resistance
All of our products meet the CE standard.
Super Abilities of integration and productions
3. Satisfied Service
Before-Sale Service: quick response within ONE working day; patient
communication
On-Sale Service: delivery on time,quality and quantity assured
After-Sale Service: 13 months warranty period;
Besides, support complete SDK info and technology service during
your project.
4. Real Time Support
Speedata Support Team is at your fingertips and will help you
troubleshoot any issues with hardware or software, while answering
all your questions or concerns. Our own personal service technician
is assigned and readily available, so there is ZERO waiting time
for your absolute convenience.
5. R & D technology support
Our R & D team have around 28 software & hardware hightech
engineers, 27% of the whole employees, who have professional
background in Electrical Engineering.
At the same time, our leaders have extensive experiences in
hardware development and product management.
since its reasonable structure and professional ability , our
products become more stable and compatible.
Paraments of KT45Q Barcode Scanner with Portable Printer:
Development Environment |
| Operating System | Android 5.1 |
| SDK | Software Development Kit |
| Language | Java |
Fundamental Characteristics |
| CPU | Quad-core 1.3Ghz ARM® Cortex-A53 (LPDDR2 and LPDDR3) |
| Memory | 1GB DDR3 RAM + 8GB Frash ROM |
| Storage | Micro SD/TF card max.32GB expansion |
| Display | 4.5-inch IPS 480 * 854 Multi-point touch capacitive screen |
Communications |
| 4G WWLAN | FDD B1B3B7
TDD B38B39B40 |
| WCDMA B1B2B5B8 |
EVDO BC0
GSM B2B3B5B8 |
| WiFi | 2.4Ghz 802.11 b/g/n |
| G-Sensor | Yes |
| Bluetooth | V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE) |
| GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
| DGPS (please check options) |
Physical Characteristics |
| Dimensions | 175 * 76 * 28mm |
| Weight | More 400g (includes main battery) |
| Expansion Slots | 1*PSAM, 2*SIM |
| Battery | rechargeable li-ion battery 4500mAh 3.7V |
| Or rechargeable li-ion battery 2250mAh 7.4V (if with printer) |
| 500hours standby time, Up to 6hours calling time, 4hours charging
time |
| Camera | 8MP Camera |
| Video | Support still image and video capture |
| Audio | 3.5mm 4way plug |
| Keypad | Front 17keys, Side 4keys |
| Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack |
| USB Host (Optional), RS-232 interface (Optional) |
User Environment |
| Operating Temp. | -10 to 50℃ |
| Humidity | 10%RH - 90%RH (Non-condensing) |
| Protection class | IP65 |
| Drop resistance level | 1.5M |
Data Modules |
Barcode scanners (optional ) |
| 1D Linear Scanner (Optional) |
| 1D scanner | Symbol SE955 (Optional 1) |
| Newland EM1300 (Optional 2) |
| Honeywell N4313 (Optional 3) |
| 2D Imager Scanner (Optional) |
| 1D/2D scanner | Symbol SE4500 (Optional 1) |
| Newland EM3000 (Optional 2) |
RFID readers |
| HF RFID reader | 13.56MHz, ISO 14443A/B, ISO 15693 |

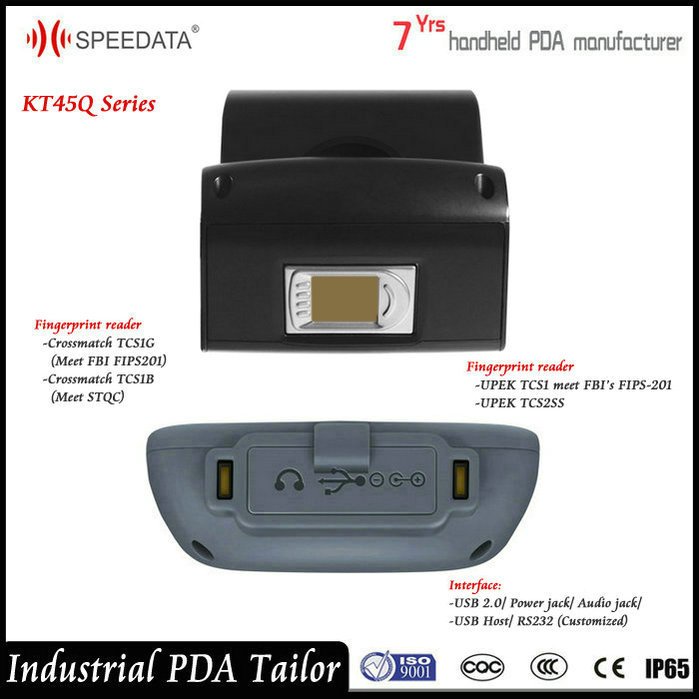

Biometric fingerprint (optional ) |
| Fingerprint | Crossmatch TCSIG (meet FBI FIPS201 ) (Optional 1) |
| Fingerprint | Crossmatch TCS1B (meet STQC ) (Optional 2) |
Other Modules (optional ) |
| Printer | Integrete 2inch Direct thermal line printing |
