GPRS / Wifi / GPS / GSM LF RFID Reader with Camera, Visible
Daylight Screen
Advantages of SD60ID LF RFID Reader
- Built-in 134.2khz LF RFID module, support ISO11784/11785 Animal
tags
- Support external antenna expansion, flexible application
- 6.0inch HD Touch Screen, 2160*1080 resolution, Bring Comfortable
visual experience
- Support NFC Reader, can be used for identifification and authority
management
- NewLand: CM60 1D 2D Barcode Scanner
- 6000mAh big capacity Battery, long working time
| OS | Android 8.1 |
| CPU | Octa-core 2.0GHz |
| RAM | 4GB |
| ROM | 64GB |
| Camera | Rear 13MP AF+Front 5MP FF |
| Size | 165.5*81.6*29.1mm |
| Display Size/Type | 6.0 inch HD |
| Resolution | 2160*1080 |
| Touch Screen | 5-point capacity touch screen |
| Weight (with battery) | 300g |
| Keypad | 2 volumes keys , 2 function keys(left one and right one), 1power
key |
| Battery Capacity | 6000mAh |
| Charging | PE Fast charging ,fully charging time< 4 hours |
| Bluetooth | BT4.1 LTE |
| Wifi | IEEE 802.11a/b/g/n 2.4G 5G Dual band |
| WWLAN | FDD-LTE B1/B3/B5/B7/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1 |
| GPS | GPS+BD+GLONASS |
| Audio | Front dual stereo speakers, Volume 90db±3db (test distance 10cm) |
| Sensor | Gsensor, Ambient light sensor, Proximity Sensor, COMPASS |
| Interface | 2 Nano SIM card slots
1 Micro SD card slots
USB TYPE-C
Support OTG
Fast charge 5V/9V 1.67A |
| Notification | Sound, Vbration,LED prompt |
| Operating Temperature | -20℃ ~ +55℃ |
| Storage Temperature | -30℃ ~ +70℃ |
| Working Humidity | 5% to 95% |
| IP Class | IP65 |
| Drop Test | 6 sides can withstand the impact of a 1.5-meter drop to the
concrete floor |
| ESD | ±15kV Air Discharge,±8kV Contact Discharge |
| Certification | CCC ,CE,FCC |
| NFC | Support agreement: ISO14443A/B
ISO15693, NFC reading distance:0~5cm |
| RFID(LF) | Work frequency 134.2khz
Support protocol : ISO11784/11785
Animal tags
Reading distance ≥7cm |
| External antenna (optional) | work frequency 134.2KHZ
Support protocol : ISO11784/11785
Animal tags |
Barcode scanning
Support code system | NewLand:CM60 2D Scan engine
Support code system:EAN13, EAN8, UPCA
UPCE, Code 128, Code 39, Codabar
UCC/EAN128, RSS,ITF, ITF14, ITF6, ISSN
ISBN, Standard 25, Matrix 25,Industrial 25
Plessey, MSI Plessey, Code 11, Code 93
PDF417, QR Code, DataMatrix, AZTEC
Hanxin Code, Maxicode, Micro QR
Micro PDF417, Composite |

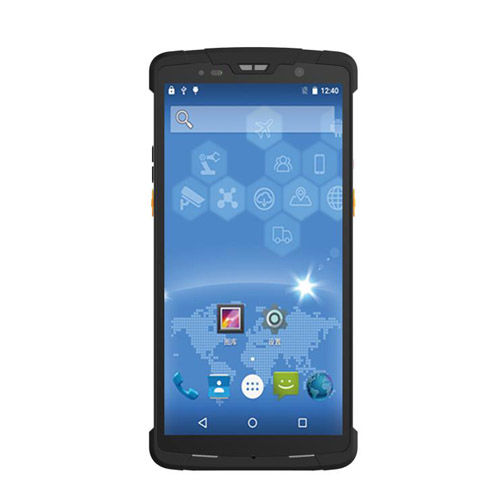

Product display
Product Application
| Logistics & Express | Animal tracking & research | Electric meter readings |
| Storage & Distribution | Petrochemical inspection | Geomatics & Surveying |
| Health & pharmaceutical industry | Mobile police service | Tobacco Logistics |
| Surveying and mapping | Agriculture | Water conservation |
| Network community management | Product tracking | Fixed-assets management |
FAQ
MOQ: 1pc
- How long is the delivery time?
Different delivery time according to quantity.
1~100 pcs, about 2 weeks.
100~500 pcs, 2-4 weeks.
More than 500 pcs, 3-4 weeks
- Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample Terminal PDA for your
testing.
- Are you a manufacturer of Handheld PDA?
Yes, we are a chinese listed manufacturer of R&D and producing
industrial PDA Terminal hardware software solutions with over 8
years' OEM/ODM experience, cooperate with Foxconn as well.
- What kind of services do you support?
1.Free SDK and technical support before and after sale.
2 Provide ODM/OEM customization services according to your needs.
3.Support 13months Warranty for your devices and other parts. and 6
months for the batteries. Lower fee for extentive warranty as well.
That's quiet a serious question. Our products are sold worldwide in
South/North America, Europe, Asia, Africa Mid-east, etc.
The market share is increasing quickly every year and we get great
feedback from our customers.
