Name: Smart Card Mobile Rfid Reader Biometric Android Fingerprint Scanner Printer
Brand: Speedata
Price: 1 USD

Ask Lasest Price
Brand Name :	Speedata
Model Number :	TT43
Certification :	ISO9001 3C /FCC /ROHS /IP65 /1.5M drop
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000pcs

Add to Cart

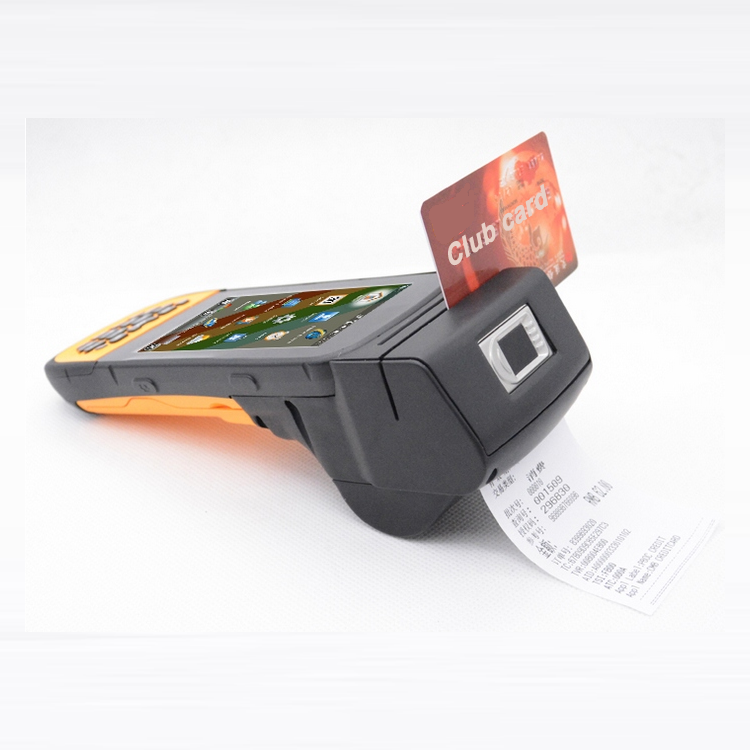

Smart Card Mobile Rfid Reader Biometric Android Fingerprint Scanner Printer

Advantages of TT43 Smart Card reader :

Universal product, multiple modulars Support extending corresponding module according to customers'demands
Suitable for different industries and solutions with variety of colors optional
Our handheld PDA terminals have three different frequencies
the terminal can adapt to harsh tough industrial environments.
The incubator and active tags are matched to create a complete cold-chain transport system

Specifications of TT43 Smart Card reader :

OS	Android 4.0.3 or	Wireless	1.Bluetooth 2.1
	Windows Mobile6.1/6.5		2.Wifi 802.11b/g/n
	Windows CE 6.0		3.3.GPRS/HSPA/EVDO
CPU	T1 AM3715 1GHz	WWLAN	GSM/GPRS/EDGE:850/900/1800/1900mMHz
			UMTS/HSPA:850/900/1900/2100MHz
			CDMA 2000 1X/EVD Rev.A: 800MHz
Memory	512MB ROM+512MB RAM	Interface	1MicroSD/TF, 1Audio Jack, 1Micro USB, 1Power Jack
Memory	512MB ROM+512MB RAM	Interface	USB Host/RS-232 interface (Customized)
Display	4.5’’ IPS 480*800	Camera	Support still image and video capture AF 5MP
Positioning module	Ublox The 7th Generation	Battery	4500mAh/3.7V or 2250mAh/7.4V
Storage	Micro SD/TF card max.32GB expansion	Quality	3C /FCC /ROHS /IP65 /1.5M drop
Slot	2PSAM, 1SIM	Function Options	1.Barcode scanner:1D/2D
			2.RFID reader:LF/HF/UHF/NFC
			3.Fingerprint
			4.DGPS/PSAM/433M/Printer
			5.IC Card reader/MSR/IR Meter reading

Fundamental Parameters of TT43 Smart Card reader :

Development Environment
Operating System	Windows Mobile 6.1/6.5 (Optional 1)
	Windows CE 6.0 (Optional 2)
	Android 4.0.3
SDK	Software Development Kit
Language	C#, java
Tool	Microsoft Visual Studio 2005
Fundamental Characteristics
CPU	TI AM3715 A8 1Ghz
Memory	512MB DDR RAM + 512MB Frash ROM
Storage	Micro SD/TF card max.32GB expansion
Display	4.5-inch IPS 854*480 (Without Transflective screen)
Display	4-wire resistive touch screen
Communications
WWLAN	Without modem (Optional 1)
WWLAN	Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA ) (Optional 2)
WiFi	JORJIN WG7310 WiFi (802.11 b/g/n)
Bluetooth	JORJIN WG7310 Bluetooth
GPS	UBLOX 6010
Physical Characteristics
Dimensions	1757628mm
Weight	more 400g with battery (according config)
Expansion Slots	2PSAM(option), 1SIM
Battery	rechargeable li-ion battery 4500mAh 3.7V
	Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
	500-hours standby time, Up to 6-hours calling time, 4-hours charging time
Camera	5MP Camera
Video	Support still image and video capture
Audio	3.5mm 4way plug
Keypad	Front 17keys, Side 4keys
Interfaces	1MicroSD/TF, 1Audio Jack, 1Micro USB, 1Power Jack
Interfaces	USB Host/RS232 interface (Customized)
User Environment
Operating Temp.	-10 to 50℃
Humidity	10%RH - 90%RH (Non-condensing)
Protection class	IP65
Drop resistance level	1.5M

Multiple modulars optional of TT43 UHF RFID reader:

Barcode scanners (optional )
1D scanner	NewLand:EM1300 1D Infrared barcode scanner -- most Cost-effective (option 1)
	HoneyWell:N4313 1D Laser barcode scanner (option 2)
	Symbol:SE955 1D Laser barcode scanner (option 3)
1D/2D scanner	NewLand:EM3095 2D Scanner (option 4)
1D/2D scanner	Symbol:SE4500SR 2D Scanner (option 5)

RFID readers
LF RFID reader	(134.2khz, ISO11784/11785, FDX-B/HDX) (Optional 1)
LF RFID reader	(125KHz) (Optional 2)
HF RFID reader	(13.56MHz ISO 14443A/B ISO 15693)
NFC reader	(include 13.56MHz ISO 14443A ISO 15693)
UHF RFID reader	UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
UHF RFID reader	UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) with R2000 shipset

Biometric fingerprint (optional )
Fingerprint	UPEK TCS1 (meet the FBI’s FIPS-201)

Other Modules (optional )
PSAM	ISO7816 (SIM card interfance)
MSR	Compatible with one, two, three track. (without PCI, EMV security certification)
IC card reader	ISO7816 ID-1
Printer	Integrate 2 inch Direct thermal line printing
Far Infrared Meter Reading	IEC62056-21 (IEC1107) communication protocol
433Mhz	Require customers to provide 433Mhz wireless modules or specifications
Zigbee	Require customers to provide 433Mhz wireless modules or specifications

Cheap Price of Mobile Smart Card Reader Biometric Fingerprint scanner Printer with 4.5inch Touch Display
