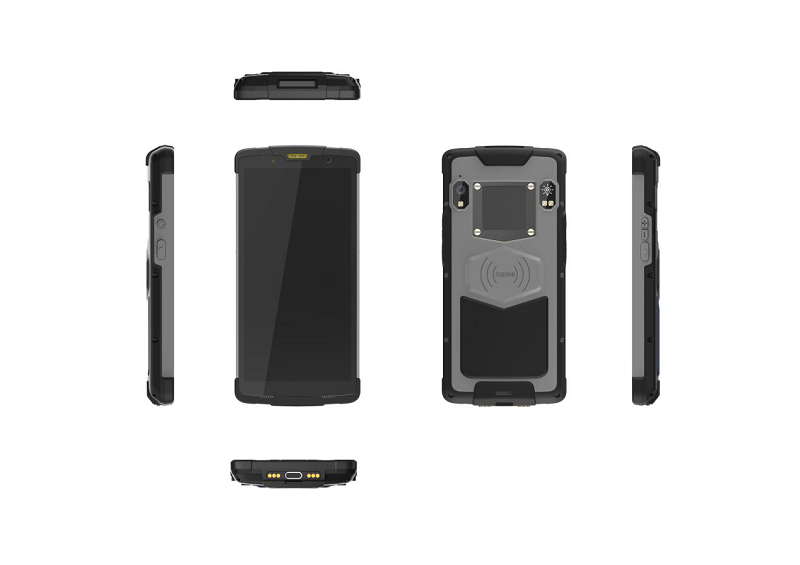

Handheld Barcode Scanner Android 8.1 Mobile Computer 64GB ROM 4GB
RAM
| SD55(8464N) Basic Parameters |
| OS | Android 8.1 |
| CPU | Octa-Core 2.0GHz |
| RAM | 4GB |
| ROM | 64GB |
| Expansion | Micro SD (TF) card slot up to 128GB |
| Keypad | 5 side buttons,2 volume buttons,2 function buttons(1 left and
right),1 power button |
| Audio | 1609 Dual speakers,waterproof design,Dual silicon mic noise
reduction |
| Notification | Sound/vibration/LED prompt |
| Dimentions | 150mm*72.5mm*15mm |
| Weight( with battery) | 200g |
| Camera |
| Camera | Rear camera 13MP AF(16MP PDAF option)；Front Camera 5MP FF |
| Focus mode | Autofocus ; Front focus |
| Flash | Support single color LED flash |
| Display |
| Display | 5.5inch Full Screen |
| Resolution | 720*1440 |
| Touch Panel | 5-point capacitive touch screen |
| Power |
| Battery | large-capacity built-in Li-ion battery 4500mAh |
| Charging | PE fast charging, fully charged time< 4 hours
Wireless charging QI standard, 5w or 10w |
| Interface | support USB-TypeC, support fast charge, support OTG |
| Communication |
| GPS | BT4.0 BLE |
| WLAN | WiFi 802.11 a/b/g/n 2.4G 5G |
| WWAN | FDD-LTE B1/B3/B5/B7 or B1/B4/B8/B13
TDD-LTE B38/B39//B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0 |
| GPS | GPS,GLONASS,BeiDou,AGPS,option UBLOX8030 |
| Performance |
| Operation Temperature | -20℃ ~60℃ |
|
| Storage Temperature | -30℃ ~+80℃ |
| Humidity | 5%~95%(No condensation) |
| Sealing | IP65 |
| Sealing | In the operating range, 6 sides can withstand the impact of 1.5
meters drop to the concrete floor |
| Tumble Test | 6 contact surfaces rolling for 1000 times/ 0.5M |
| ESD | ±15kV Air Discharge, ±8kV Contact Discharge |
| Certificate | CCC,CTA,CE,FCC |
| Extensibility |
| NFC RFID Reader | NFC (PN548) Support NFC Reader/writer, ISO14443-A/B/F, ISO18092,
FeliCa, MIFARE, ISO15693 |
| Barcode Scanner | Honeywell N6603 1D/2D |
|
SPEEDATA History :
2008: "Beijing Geofanci Technology Co.Ltd"was established in
Beijing Shangdi Information Industry Base.
2009: Started mobile IoT product development.
2010: Established a Shenzhen office and Dalian Zhuoxun Softcom
Technology Co., Ltd. to start the development of Linux and Android
kernel products.
2011: Customized products enter the police terminal market and
Overseas sales are beginning
2012: The year-end summary will determine the market positioning of
“focus on mobile IoT and solutions”.
Start branding and register the trademark "Speedata".
Begin modular product design to prepare for the large-scale
customization of future hardware products.
2013: Established the East China (Shanghai) Sales Center.
2014: The company applied for a change of name to “Beijing Speedata
Technology Co., Ltd.”.
Mobile ticketing equipment for the Brazilian Club Football League
and the World Cup.
2015: "Beijing Speedata Technology Co., Ltd." officially listed ,
stock code: 832442.
2016: "Iron Man series products" mass production; product model:
KT40/KT50/KT55/KT80;
2017: "Internet + industry featured products" strategic objectives,
focusing on logistics / police / medical / transportation and other
fields; new products: logistics special amount square / PC tablet /
bus aggregation payment car toll machine.
2018: "SD series products" mass production, special products for
express logistics, mobile medical and other industries, and expand
the handheld terminal product line; new product models:
SD35/SD55/SD55UHF/SD60/SD60RT/SD60PRT/SD100;
