Handheld iot full touchscreen terminal pad with wristband and
nfc/rfid uhf reader
As the star product, SD100 is welcomed by customers with its 10.1
inch touchscreen and multiple interface supported design. Like all
other products we produced, SD100 is an IOT tablet for daily work,
and works on increasing the efficiency and decreasing the waste of
the human resource. For update, now we also have SD100 5G, and for
any further information, please contact us.
Features: - 10.1 inch touchscreen, HD IPS screen
- 9000mAh capacity of battery

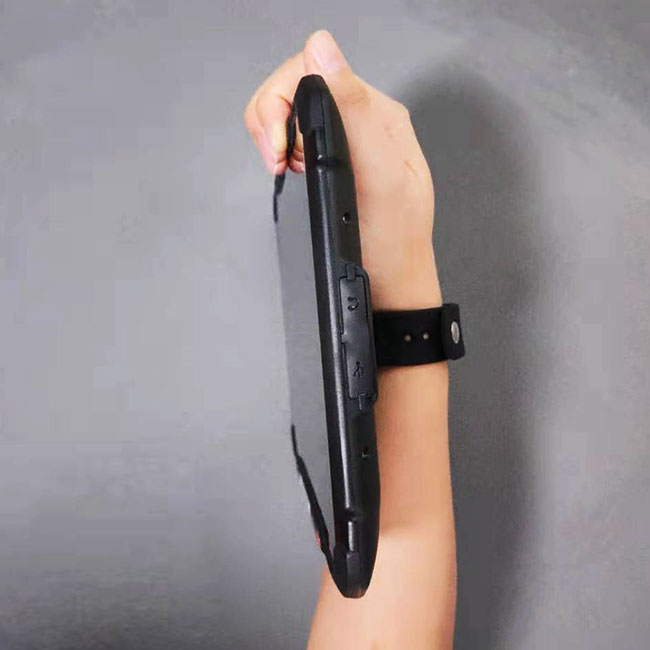

- Magnetic support wristband
- various interfaces supported
- multiple physical keys for easy switch to differrent applications
|
SD100 Specifications
| Model | SD100 |
| CPU | Octa-core 2.0GHz |
| OS | Android 8.1 |
| RAM | 4GB |
| ROM | 64GB |
| Camera | Rear camera 13MP AF with LED flash, Front Camera 5MP FF |
| Display size/type | 10 inch, IPS highlight screen |
| Resolution | 1200*1920 |
| Touch Screen | 5-point capacitive touch screen |
| Size | 254mm*176mm*17.4mm |
| Weight(with battery) | 800g |
| Battery capacity | 9000mAh, the typical working time not less than 10 hours |
| Charging | PE fast charging, support charger |
| Bluetooth | BT4.1 BLE |
| Wi-Fi | IEEE 802.11 a/b/g/n 2.4G 5Gdual frequency |
| WWLAN | FDD-LTE B1/B3/B5/B7/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1 |
| GPS positioning module | GPS+BD+GLONASS |
| Audio | Front dual stereo speakers, Volume 90db±3db(test distance 10cm) |
| Sensor | Gsensor, Ambient light sensor, Proximity Sensor, COMPASS |
| Expansion | Micro SD(TF) card slot up to 128GB |
| Interface | USB-TypeC, external expansion interface Pogo (USB, serial, IIC,
power supply, etc.), 3.5mm headphone jack, charging base Pogo |
| Keypad | 12 buttons |
| Notification | Sound, Vbration, LED prompt |
| Operating temperature | -20℃ to +55℃ |
| Storage temperature | -30℃ to +70℃ |
| Working Humidity | 5% to 95% |
| ESD | ±15kV Air Discharge, ±8kV Contact Discharge |
| Certificate | CCC,CE |
| PSAM card (smart encryption card) | optional |
| RFID (High frequency) | Supporting Protocol : ISO14443A/B, ISO15693, NFC reading distance:
0~5cm |
| RFID (Ultra High Frequency) | optional |
Protocol standard: ISO18000-6C protocol
Working frequency:
China (920-925MHz)
North America (902-928MHz)
European frequency (865-867MHz)
Antenna parameters: ceramic antenna (1.5dBi)
Power: working voltage 4-5V, RF output 5dBm to 30dBm(1W), 1dBm
adjustable;
Standby power consumption: about 0.25W, maximum 5W(typical 4W)
Identification range: indoor >12m, outdoor open environment
>6m
Group read rate: >200 tags per seconds |
Barcode scanning
Support code system | CM60 |
| Support code system:EAN13, EAN8, UPCA, UPCE, Code 128, Code 39,
Codabar, UCC/EAN128, RSS,ITF, ITF14, ITF6, ISSN, ISBN, Standard 25,
Matrix 25,Industrial 25,Plessey, MSI Plessey, Code 11, Code 93,
PDF417, QR Code, DataMatrix, AZTEC, Hanxin Code, Maxicode, Micro
QR,Micro PDF417, Composite |
Products Details:
Speedata Services
As a listed company from china manufacturer, we support you:
Completely Free SDK and technical support for you.
ODM/OEM customization services according to your needs.
13 months warranty for your devices and other parts. and 6 months
for the batteries. Exend warranty,it'll cost 0.5% for each per
year.
Free maintenance of the devices and part of accessories replacement
in the warranty .if out of the warranty, you'll have to pay the
basic cost for them.
