EPG G2 BT4.1 BLE Biometric Fingerprint Reader Rugged Pda CCC For Police

Ask Lasest Price
Brand Name :	SPEEDATA
Model Number :	SD50(F)
Certification :	CE,CCC,ROHS, FCC,IP65
Payment Terms :	L/C, T/T
Supply Ability :	10000pcs/Mouth

Add to Cart

Product Details
Company Profile

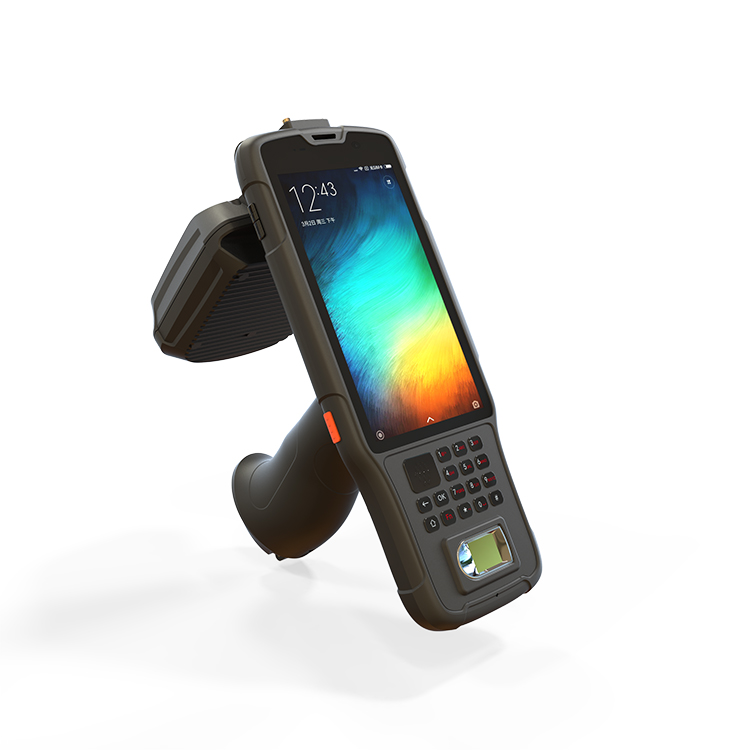

EPG G2 BT4.1 BLE Biometric Fingerprint Reader Rugged Pda CCC For Police

Product Introduction

High performance

SD50(F) is specially designed for financial management. It is a great help in reading rfid tags on the bank cash boxes being ferried and identifying workers by recognizing their fingerprints. As a UHF RFID reader, it is characterized by long-range and high-rate reading:

Indoor reading distance>22m

Outdoor reading distance>8m

Reading rate>200 tags per second

Comfortable and flexible operation

Besides touch screen, pressing keys is supported.

Special pistol grip design gives comfortable use experience.

The pistol grip can be taken down, so operators can operate flexibly according to individual needs.

SD50(F) Basic Parameters
OS	Android 8.1
CPU	Octa-Core 2.0GHz
RAM	2/4GB
ROM	16/64GB
Expansion	Micro SD (TF) card slot up to 128GB
Keypad	35 buttons
Notification	Sound/vibration/LED prompt
Audio	Front dual stereo speakers Volume 90db±3db (test distance 10cm)
Dimentions	2078420mm
Weight( with battery)	716g
Camera
Camera	Rear 13MP autofocus and flash light,Front Camera 5MP
Focus mode	Autofocus ; Fixed focus
Flash	Support High Light LED Flash
Display
Display	5.0 Inch IPS
Resolution	720*1280
Touch Panel	5-point capacitive touch screen
Power
Battery	Master:7000mAh Handle:4000mAh
Charging	PE fast charging, ful charging time<4 hours
Interface	2micro SIM cards,1micro SD card slot up to 128GB,USB-Type C, support fast charging, OTG,Support fast charging5V/9A 1.67,charging and bottom USB connector
Communication
Bluetooth	BT4.1 BLE
Wi-fi	IEEE 802.11 a/b/g/n 2.4G 5Gdual frequency
WWAN	FDD-LTE B1/B3/B7 TDD-LTE B38/B39/B40/B41 TDSCDMA B34/B39 WCDMA B1/B2/B5/B8 GSM B2/B3/B5/B8 CDMA1x/CDMA2000 BC0/BC1
GPS Position Module	GPS+BD+GLONASS
Performance
Operation Temperature	-20℃ ~55℃
Storage Temperature	-30℃ ~+70℃
Humidity	5%~95%(No condensation)
Sealing	IP65
Drop Test	In the operating range, 6 sides can withstand the impact of 1.2meters drop to the concrete floor
ESD	±15kV Air Discharge, ±8kV Contact Discharge
Certificate	CCC,CE, ROHS, FCC
Extensibility
Fingerprint	Crossmatch FBI Fingerprint Scanner
UHF RFID Reader	Protocol standard:EPG G2/ISO 18000-6C,Work frequency : China(920-925MHz),North America (902-928MHz),European frequency(865-867MHz),Antenna parameters:4dBi four arm spiral,Power:working voltage3.6V-5V,Radio frequency input:5dBM to 33dBM(1W),1dBM adjustable standby power consumption about 0.25W, the larger is 7.5W (typical 7W),Card reading distance:indoors 22 meters or more, outdoors 8 meters or more. Label speed >200/sec
PSAM	Support
Sensor	Geomagnetism, acceleration, optical distance
