USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon

Product Categories

Beijing Speedata Technology Co., Ltd

Contact Now

Name: USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
Brand: SPEEDATA
Price: 1 USD

Ask Lasest Price
Brand Name :	SPEEDATA
Model Number :	KT80 china fingerprint scanner
Certification :	CE , IP65 , ISO9001, 3C
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	10000 pcs per month
Delivery Time :	5- 8 working days

Add to Cart

USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon

Fingerprint Module Specifications
1:1 verification matching speed	< 400ms(Feature extraction and fingerprint matching)
1:256 Fingerprint search time	< 2s
Resolutions	500DPI
Image Size	256x304 pixels
Security level	5, adjustable
Capacity	1776 fingerprints
FAR	<0.001%
FRR	<%1.5
Supply power	3.6V-7V
Working current	<80mA
Peak current	<100mA
Communication interface	TTL(RS232)
Communication Baud rate	38400bps,57600bps,115200bps
Working temperature	-10°C~50°C
Working humidity	45%RH~85%RH (no dew)
Module dimension	55.0×22×24.5mm (LWH)

The Specification of KT80 China Fingeprint Scanner

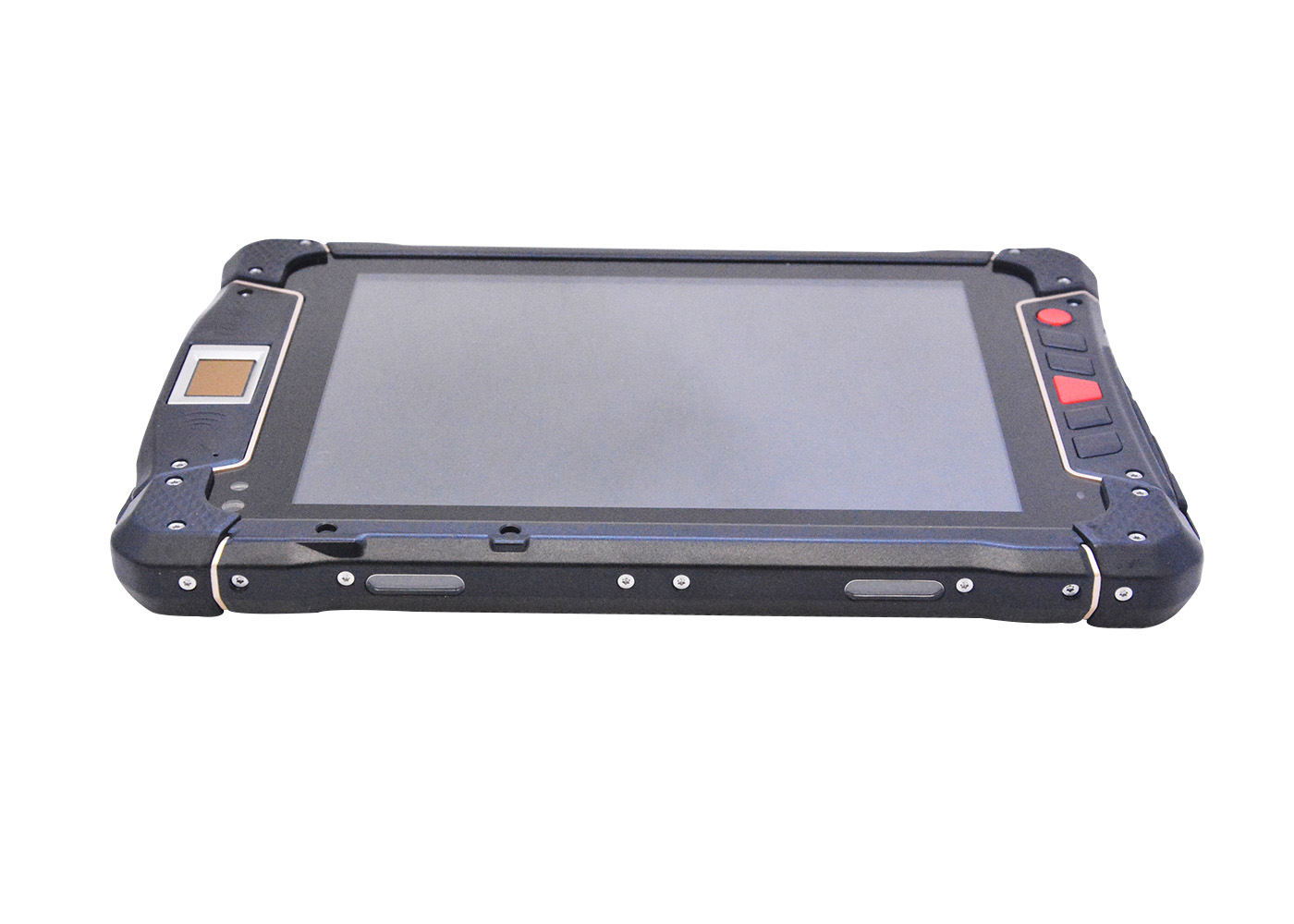

KT80 Rugged Tablet with Fingerprint Reader
OS		Android 5.1
CORE
Core	CPU	Eight-core 1.3GHz ARM® Cortex-A53
	WWLAN	FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8
	Flash ROM	16GB
	RAM	2GB DDR3
General Configuration
Display		8 inch IPS 1024*768
touch screen		Multi-point touch capacitive screen
GPS		Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
Bluetooth		v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi		802.11 a/b/g/n
Protection class		IP65
Drop resistance level		1.5m
Camera	Rear camera	13MP Camera
	Front camera	5MP Camera
Keypad	Front /Side	12keys

Interface	Micro-USB connector	USB2.0 OTG
	SIM card slot	2 Micro SIM slot
	TF card slot	*2
	charging	Micro USB + Magnetic charging
	Audio Jack	*2
External Interface	USB HOST	*1
	RS232	* 2

Battery	Type	rechargeable Li-ion battery 6800mAh*2
	Standby Time	600hours
	Calls Time	Up to 6hours
	Charging Time	8hours (magnetic charging)
Physical Characteristics	Dimension	27017620mm
	Weight	>800g with battery (according config)

Operating temperature		-20°C to 50°C / -4°F to 122°F
Storage temperature		-30°C to 70°C / -22°F to 158°F
Humidity (non-condensed)		Operating 10% to 90% / Storage 5% to 95%
Electrostatic discharge		± 15 kV air discharge, ± 8 kV contact discharge
EMC regulation		CE

OPTIONS
Barcode scanner	option	HoneyWell 1D&2D barcode scanner
NFC	option	13.56MHz NFC
IRIS recognition	option	The recognition distance is less than 20cm
PSAM	option	ISO7816 (SIM card interfance)
Infrared meter reading	option	IEC62056-21(IEC1107) communication protocol
Magnetic bracket	option	Apply to car or desktop fixation
Wrist strap	option	360 degree rotation
Stylus	option	Capacitance touch pen
RFID	option 1	LF RFID(134.2KHz, ISO11784/11785, FDX-B/HDX)
	option 2	LF RFID(125KHz)
	option 3	HF RFID(13.56MHz ISO 14443A/B ISO 15693)
	option 4	UHF RFID 860-960MHz ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader.
Smart card reader	option	contact SMART card ISO7816 compliant
Fingerprint	Yes	crossmatch TCS1(With FBI, FIPS-201 ,ISO19794,ANSI,WSQ)
	option2	Other custom fingerprint modules
		MRZ
		Other customers custom module.

Shipping

Delivery time : Samples 5-8 working days after order confirmation. Bulk order depend on the Quantity

Relative Product KT50 Handheld Fingerprint Reader

Why choose us

1. Experienced

More than 9 years experience in Hardware IOT Platform !

R&D and oversea sales, we know how to be your good manufacturer and business partner!!!

2. High Quality Products

4. Satisfied Service

Before-Sale Service: quick response within ONE working day; patient communication

On-Sale Service: delivery on time; quality and quantity assured

After-Sale Service: One year warranty period; technology support during your project.

Free SDK fro secondary development
