    Mobile Printers All in one with Best Portable Multifunctional fingerprint collector and 4G WWLAN

    Ask Lasest Price
    Brand Name : Speedata
    Model Number : KT45Q-B2-C8M-TCS1G-PE48
    Certification : CCC,CQC,ISO9001,IP65,CE
    Payment Terms : T/T, Western Union, MoneyGram,PayPal
    Supply Ability : 5000pcs/months
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Mobile Printers All in one with Best Portable Multifunctional fingerprint collector and 4G WWLAN

    Mobile Printers All in one with Best Portable Multifunctional fingerprint collector and 4G WWLAN

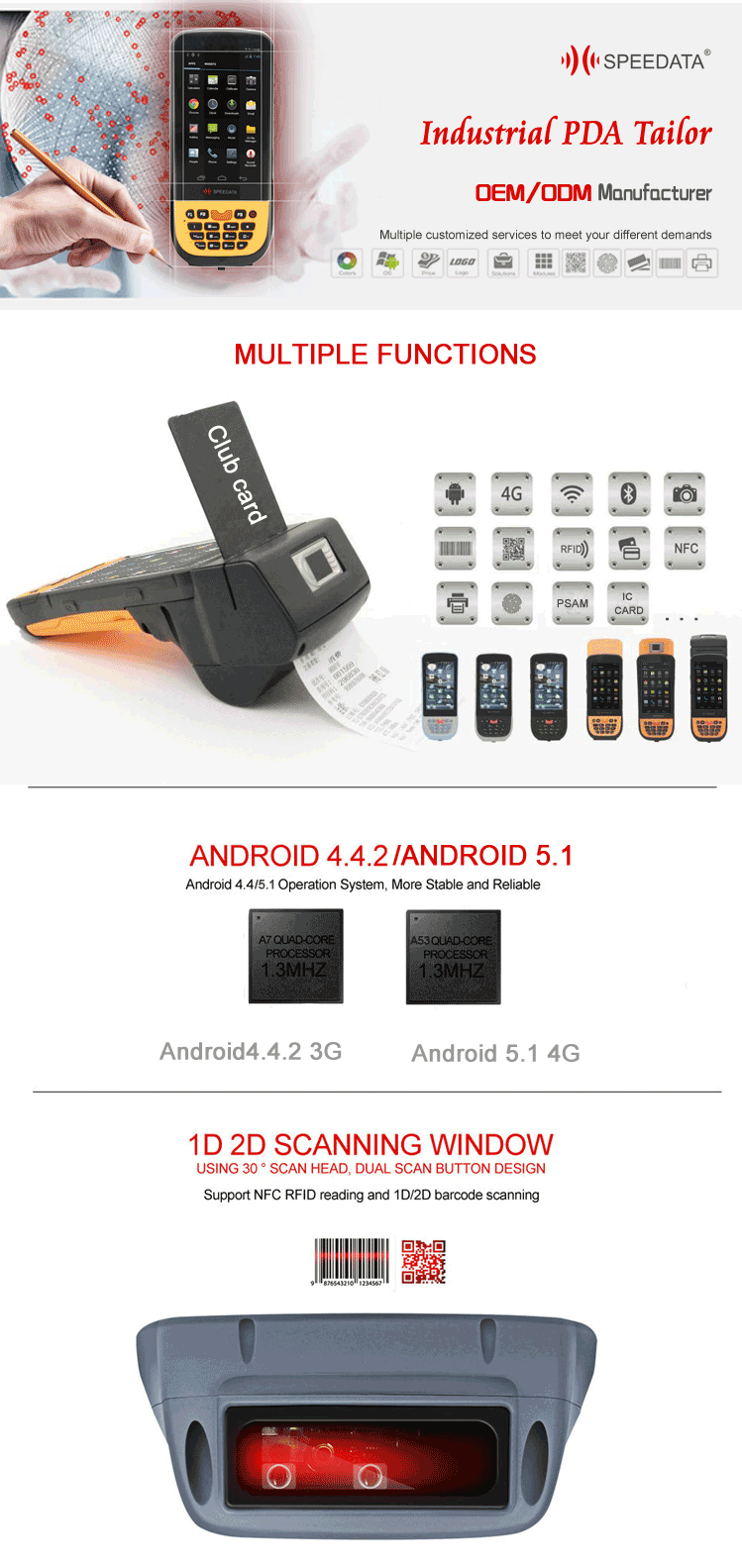

    Specifications of KT45Q


    1,4.5inch high-definition IPS LCD capacitive touch screen to meet your visual enjoyment

    2,8MP camera with high definition ,it's easy to collect all kinds of image information

    3,Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc

    4,Android Operation System, More Stable and Reliable,provide complete SDK and technical support to make further app development easily

    5,Special structure and external cushion protection design, solid and waterproof body shape

    6,Matched with the machine seat charger, to ensure the charging interface durable,it's more quicker and easier

    7,IP65 Industrial Class, 1.5M drop protection

    8,Multiple Functions optional: card reader, printer, fingerprint, infrared reader, temperature, etc


    Paramaters of KT45Q
    Development Environment
    Operating SystemAndroid 5.1
    SDKSoftware Development Kit
    LanguageJava
    Fundamental Characteristics
    CPUQuad-core 1.3Ghz ARM® Cortex-A53 (LPDDR2 and LPDDR3)
    Memory1GB DDR3 RAM + 8GB Frash ROM
    StorageMicro SD/TF card max.32GB expansion
    Display4.5-inch IPS 480 * 854 Multi-point touch capacitive screen
    Communications
    4G WWLANFDD B1B3B7
    TDD B38B39B40
    WCDMA B1B2B5B8
    EVDO BC0
    GSM B2B3B5B8
    WiFi2.4Ghz 802.11 b/g/n
    G-SensorYes
    BluetoothV2.1+EDR / 3.0+HS / V4.0 Low Energy(LE)
    GPSSupports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
    DGPS (please check options)
    Physical Characteristics
    Dimensions175 * 76 * 28mm
    WeightMore 400g (includes main battery)
    Expansion Slots1*PSAM, 2*SIM
    Batteryrechargeable li-ion battery 4500mAh 3.7V
    Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
    500hours standby time, Up to 6hours calling time, 4hours charging time
    Camera8MP Camera
    VideoSupport still image and video capture
    Audio3.5mm 4way plug
    KeypadFront 17keys, Side 4keys
    Interfaces1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
    USB Host (Optional), RS-232 interface (Optional)
    User Environment
    Operating Temp.-10 to 50℃
    Humidity10%RH - 90%RH (Non-condensing)
    Protection classIP65
    Drop resistance level1.5M
    Barcode scanners (optional )
    1D Linear Scanner (Optional)
    1D scannerSymbol SE955 (Optional 1)
    Newland EM1300 (Optional 2)
    Honeywell N4313 (Optional 3)
    2D Imager Scanner (Optional)
    1D/2D scannerSymbol SE4500 (Optional 1)
    Newland EM3000 (Optional 2)
    Data Modules
    RFID readers (optional)
    LF RFID reader134.2khz, ISO 11784/11785, FDX-B/HDX (Optional 1)
    125khz (Optional 2)
    HF RFID reader13.56MHz, ISO 14443A/B, ISO 15693
    NFC readerInclude 13.56MHz, ISO 1443A/B
    UHF RFID reader860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 chipset
    860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 chipset, Long distance reader
    Biometric fingerprint Reader (optional )
    Fingerprint SensorCrossmatch TCSIG (meet FBI FIPS201 ) (Optional 1)
    Fingerprint SensorCrossmatch TCS1B (meet STQC ) (Optional 2)
    Fingerprint SensorUPEK TCSI (meet FBI's FIPS-201)
    Fingerprint SensorUPEK TCS2SS
    Other Modules (optional )
    DGPSUblox LEA-6T (with RTK)
    PSAMISO7816 (SIM card interface)
    MSRCompatible with one, two, three track(without PCI, EMV security certification)
    IC card readerISO7816 ID-1
    PrinterIntegrete 2inch Direct thermal line printing
    Far Infrared Meter ReadingIEC62056-21 (IEC1107) communication protocol
    433MhzRequire customers to provide 433Mhz wireless modules or specifications
    ZigbeeRequire customers to provide 433Mhz wireless modules or specifications
    Printer Module Specifications
    Printing methodDirect thermal line printing
    Paper width57mm
    Print width48mm
    Resolution Ration8 dots/mm (384 dots/line )
    Life of printing head5,000,000 -15,000,000 character lines
    Printing speed40-60mm/sec
    Character size8*16dots , 12*24dots
    Paper supplied57mm wide , 22mmø
    InterfaceSerial RS232C/TTL
    Operating temperature0℃--50℃
    Storage temperature-20℃ -- 60℃
    Operating humidty10%--80%
    Storage humidty10%--90%
    Fingerprint Module Specifications
    TYPE1TCS1G
    Touchchip SensorInterface8 bit parallel interface
    20-pin flex connector
    Power(typical)4.5-4.6V supply
    20mA during capture
    Touchchip ModuleInterface Options5-soldier pads for USB only @ 5V
    12-pin flex: USB,SPI,UART @ 3.3V (optional)
    Power(typical)3.0V-3.6V
    80mA(capture,match)
    Standby(USB) :1350 uA
    Standby(UART/SPI) : 1150uA
    Wake-up time: <15 ms (Sleep to imaging)
    Digital ID Hardware EngineBiometric Companion Processor- 1:1 match time ~50uS per template
    - 1:100 match time <2s typ.
    - On-board NVM storage for up to 100 templates
    - More than 100,000 erase/write cycles
    - More than 20 years data retention
    Common SpecFingerprint Image12.8×18.0mm(256×360pixels)
    508dpi,8-bit greyscale
    Sensor Coatinggold coating,FBI FIPS-201 Compliant (EIM)
    Package Size23 mm x 35 mm x 4.1 mm
    ESDIEC 61000 - 4.2 level 4, +/- 15KV air, +/- 8IKV contact
    Ingress ProtectionIP 65 (water/dust protection)
    Environmental• Operating temp: -30 to +70 C
    • Storage temp: -30 to + 125 C
    • Humidity: 5% - 93% non-condensing
    • ROHS, low halogen

    Advantages

    1. R & D technology support

    1.Our R&D team have experienced software & hardware high tech engineers, 27% of the whole employees, who have professional background in Electrical Engineering.

    2.Since its reasonable structure and professional ability,our products become more stable and compatible.

    As expected, we have built up a strong spirit of collaboration teamwork and gained a good reputation from our customers.


    2. Strong customized capabilities

    Speedata serves wide industries and fields, such as the electric power, mapping, e government, logistics, traceability management, fixed asset management.etc. we have accumulated rich and extensive experiences in those industries.

    we pay more attention to design personalized software and hardware products as well as whole solutions development.

    The products will develop in the direction of the platformization and modularization and put technology into the public platform to simplify for its secondary development.

    At the same time, we supply core board customization, sensors and module development to combine with platform quickly to meet customers demand.


    Company Information

    Beijing SPEEDATA is committed to provide advanced data acquisition terminal in each field. after long-term accumulation, we have built a comprehensive and professional technology team and service, has a wealth of experience in the field .whatever you need GIS ,Automatic identification technology or mobile devices , our highly technical conformity ability and professional service will provide the most suitable solution for you.


    Win-win cooperation is our pursuing goal ,through establish close cooperation relations with software system integration in the industrial field,build a complete perfect information management system from the front to the background. Successively for logistics ,FMCG, member management , electric power, surveying and mapping , agriculture, water conservancy,medical,petrochemical inspection,communication and many other industries provide advanced ,complete industry solutions and equipment .


    Applications

    We provide free SDK for corresponding functional PDA, like barcode demo, fingerprint demo, printer demo, RFID demo, IC card demo etc.


    We have a strong R&D team for not only hardware but also software, have developed the following solutions for our customers:

    Cold-chain logistics and transportation tracking

    meat product tracking

    Mobile police service

    Fixed-Assets management

    Tickets checking

    More industrial solutions of management systems as following:

    1. Logistics & Express
    2. Transportation
    3. Electric meter readings
    4. Network community management
    5. Storage & Distribution
    6. Petrochemical inspection
    7. Geomatics & Surveying
    8. Product tracking
    9. Health & pharmaceutical industry
    10. Mobile police service
    11. Tobacco Logistics
    12. Fixed-assets management
    13. Surveying and mapping
    14. Agriculture
    15. Water conservation
    16. Animal tracking & research
    17. Retail chain
