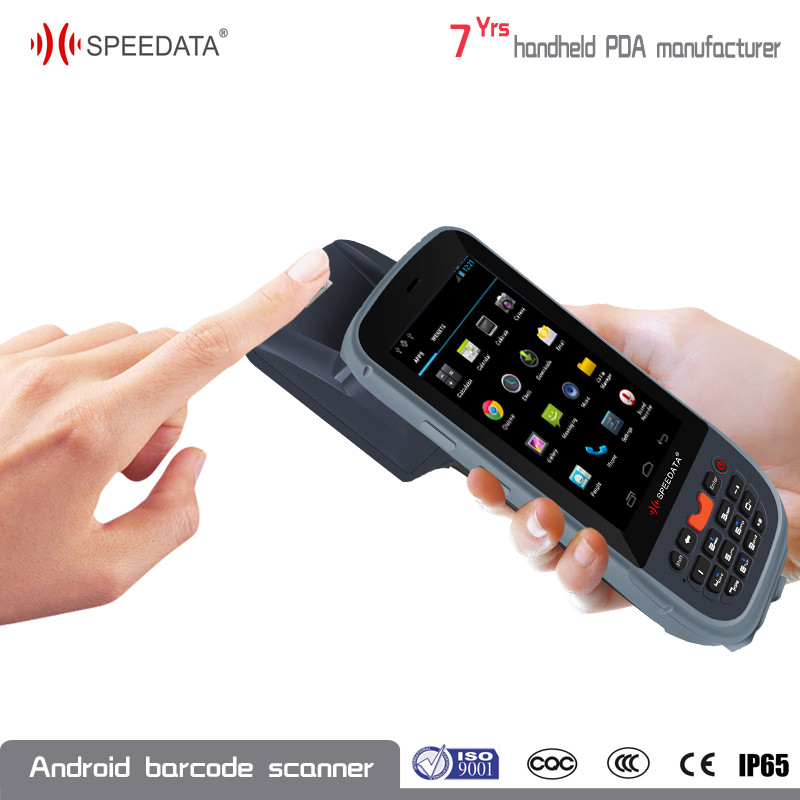

Android Handheld Fingerprint Scanner NFC Reader A7 1.3GHz
Qard-core
Features of KT45 biometric handheld portable fingerprint scanner
1.Special structure and external cushion protection design with
solid and wearproof bodyframe of 2 colors conbination
2.The incubator and active tags are matched to create a complete
cold-chain transport system
3.4.5inch high-definition IPS LCD capacitive touch screen to meet
your visual enjoyment
4.800MP camera with high definition ,it's easy to collect all kinds
of image information
5.Android 4.4 Operation System, More Stable and Reliable,provide
complete SDK and technical support to make further app development
easily
6.Multiple Functions optional: Support 1D/2D barcode
scanning,LF/HF/UHF/NFC RFID reading, terminal printer, MSR, PSAM,IC
card reader, printer, fingerprint, infrared reader, temperature
etc.
7.Matched with the charger cradle, to ensure the charging interface
durable,it's more quicker and easier
8.IP65 Industrial Class, 1.5M drop protection
Specifications of KT45 biometric handheld portable fingerprint
scanner
OS | Android 4.4.2 | Wireless | 1.Bluetooth 2.1/3.0/4.0 2.Wifi 802.11b/g/n 3.GPRS/HSPA |
CPU | A7 1.3GHz Qard-core | WWLAN | GSM/GPRS/EDGE:850/900/1800/1900mMhz UMTS/HSPA:850/900/1900/2100MHz |
Memory | 8GB ROM+1GB RAM | Interface | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack USB Host/RS-232 interface (Customized) |
Display | 4.5’’ IPS 480 * 854 LCD Multi-point touch screen | Camera | Support still image and video capture AF 8MP |
Positioning module | GPS/AGPS/Ublox8030 | Battery | 4500mAh/3.7V or 2250mAh/7.4V |
Storage | Micro SD/TF card max.32GB expansion | Quality | 3C /FCC /ROHS /IP65 /1.5M drop |
Slot | 1*PSAM, 2*SIM | Function Options | 1.Barcode scanner:1D/2D 2.RFID reader:LF/HF/UHF/NFC 3.Fingerprint 4.DGPS/PSAM/433M/Printer 5.IC Card reader/MSR/IR Meter reading |
Development Environment KT45 biometric handheld portable
fingerprint scanner
Operating System | Android 4.4.2 |
SDK | Software Development Kit |
Language | Java |
Fundamental Characteristics KT45 biometric handheld portable
fingerprint scanner
CPU | ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3) Quad-core 1.3Ghz |
Memory | 1GB DDR3 RAM + 8GB Frash ROM |
Storage | Micro SD/TF card max.32GB expansion |
Display | 4.5-inch IPS 480 * 854 Multi-point touch capacitive screen |
Communications of KT45 biometric handheld portable fingerprint scanner
WWLAN | GSM band 850/900/1800/1900MHz, Class 12 GPRS, EDGE UMTS 850/900/1900/2100MHz HSPA |
WiFi | 2.4Ghz 802.11 b/g/n |
Bluetooth | V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE) |
GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS DGPS (please check options) |
Physical Characteristics of KT45 biometric handheld portable fingerprint scanner
Dimensions | 175 * 76 * 28mm |
Weight | ≧400g (includes main battery) |
Expansion Slots | 1*PSAM, 2*SIM |
Battery | rechargeable li-ion battery 4500mAh 3.7V |
Or rechargeable li-ion battery 2250mAh 7.4V (if with printer) |
500hours standby time, Up to 6hours calling time, 4hours charging
time |
Camera | 8MP Camera |
Video | Support still image and video capture |
Audio | 3.5mm 4way plug |
Keypad | Front 17keys, Side 4keys |
Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack USB Host (Optional), RS-232 interface (Optional) |
User Environment of KT45 biometric handheld portable fingerprint scanner
Operating Temp. | -10 to 50℃ |
Humidity | 10%RH - 90%RH (Non-condensing) |
Protection class | IP65 |
Drop resistance level | 1.5M |
Data Modules of KT45 biometric handheld portable fingerprint scanner
Barcode scanners (optional )
1D Linear Scanner (Optional) |
1D scanner | Symbol SE955 (Optional 1) Newland EM1300 (Optional 2) Honeywell N4313 (Optional 3) |
2D Imager Scanner (Optional) |
1D/2D scanner | Symbol SE4500 (Optional 1) Newland EM3000 (Optional 2) |
RFID readers of KT45 biometric handheld portable fingerprint scanner
LF RFID reader | 134.2khz, ISO 11784/11785, FDX-B/HDX (Optional 1) |
125khz (Optional 2) |
HF RFID reader | 13.56MHz, ISO 14443A/B, ISO 15693 |
NFC reader | Include 13.56MHz, ISO 1443A/B |
UHF RFID reader | 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in
direct mode----with AS3992 shipset |
860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in
direct mode----with R2000 shipset, Long distance reader |
Biometric fingerprint (optional ) of KT45 biometric handheld portable fingerprint scanner
Fingerprint | UPEK TCSI (meet the FBI’s FIPS-201) (Optional 1) |
Fingerprint | UPEK TCS2SS (Optional 2) |
Other Modules (optional ) of KT45 biometric handheld portable fingerprint scanner
DGPS | Ublox LEA-6T (with RTK) |
PSAM | ISO7816 (SIM) |
MSR | Compatible with one, two, three track (without PCI, EMV security certification) |
IC card reader | ISO7816 ID-1 |
Printer | Integrete 2inch Direct thermal line printing |
Far Infrared Meter Reading | IEC62056-21 (IEC1107) communication protocol |
433Mhz | Require customers to provide 433Mhz wireless modules or
specifications |
Zigbee | Require customers to provide 433Mhz wireless modules or
specifications |
