Industrial Android Rugged PDA Thermal Printer Blue 4.3'' Wireless
Bluetooth
KT45 Handheld terminal has three frequency range respectively, it
supports a long-range UHF reader functions as well as 2.4G RFID
reader with ultra-long-range.
Advantages of KT45 best printers terminal PDA
1.Universal product, Support extending corresponding module
according to customers'demands
2.Suitable for different industries and solutions with variety of
colors optional
3.The incubator and active tags are matched to create a complete
cold-chain transport system
Specifications of KT45 best printers terminal PDA
| OS | Android 4.4.2 | Wireless | 1.Bluetooth 2.1/3.0/4.0 |
| 2.Wifi 802.11b/g/n |
| 3.GPRS/HSPA |
| CPU | A7 1.3GHz Qard-core | WWLAN | GSM/GPRS/EDGE:850/900/1800/1900mMhz |
| UMTS/HSPA:850/900/1900/2100MHz |
| Memory | 8GB ROM+1GB RAM | Interface | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack |
| USB Host/RS-232 interface (Customized) |
| Display | 4.5’’ IPS 480 * 854 LCD Multi-point touch screen | Camera | Support still image and video capture AF 8MP |
Positioning module | GPS/AGPS/Ublox8030 | Battery | 4500mAh/3.7V or 2250mAh/7.4V |
| Storage | Micro SD/TF card max.32GB expansion | Quality | 3C /FCC /ROHS /IP65 /1.5M drop |
| Slot | 1*PSAM, 2*SIM | Function Options | 1.Barcode scanner:1D/2D |
| 2.RFID reader:LF/HF/UHF/NFC |
| 3.Fingerprint |
| 4.DGPS/PSAM/433M/Printer |
| 5.IC Card reader/MSR/IR Meter reading |
Multiple Functions of KT45 best printers terminal PDA
| Data Modules | |
| Barcode scanners (optional ) | |
| 1D Linear Scanner (Optional) |
| 1D scanner | Symbol SE955 (Optional 1) |
| Newland EM1300 (Optional 2) |
| Honeywell N4313 (Optional 3) |
| 2D Imager Scanner (Optional) |
| 1D/2D scanner | Symbol SE4500 (Optional 1) |
| Newland EM3000 (Optional 2) |
| |
| RFID readers | |
| LF RFID reader | 134.2khz, ISO 11784/11785, FDX-B/HDX (Optional 1) |
| 125khz (Optional 2) |
| HF RFID reader | 13.56MHz, ISO 14443A/B, ISO 15693 |
| NFC reader | Include 13.56MHz, ISO 1443A/B |
| UHF RFID reader | 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in
direct mode----with AS3992 shipset |
| 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in
direct mode----with R2000 shipset, Long distance reader |
| |
Biometric fingerprint (optional ) | |
| Fingerprint | UPEK TCSI (meet the FBI’s FIPS-201) (Optional 1) |
| Fingerprint | UPEK TCS2SS (Optional 2) |
| |
| Other Modules (optional ) | |
| DGPS | Ublox LEA-6T (with RTK) |
| PSAM | ISO7816 (SIM) |
| MSR | Compatible with one, two, three track (without PCI, EMV security certification) |
| IC card reader | ISO7816 ID-1 |
| Printer | Integrete 2inch Direct thermal line printing |
| Far Infrared Meter Reading | IEC62056-21 (IEC1107) communication protocol |
| 433Mhz | Require customers to provide 433Mhz wireless modules or specifications |
| Zigbee | Require customers to provide 433Mhz wireless modules or specifications |
Specifications of KT45 best printers terminal PDA
1.4.5inch high-definition IPS LCD capacitive touch screen to meet
your visual enjoyment
2.800MP camera with high definition ,it's easy to collect all kinds
of image information
3.Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint
reading, terminal printer, MSR, PSAM function etc.
4.Android 4.4 Operation System, More Stable and Reliable,provide
complete SDK and technical support to make further app development
easily
5.Special structure and external cushion protection design, solid
and wearproof body shape
6.Matched with the machine seat charger, to ensure the charging
interface durable,it's more quicker and easier

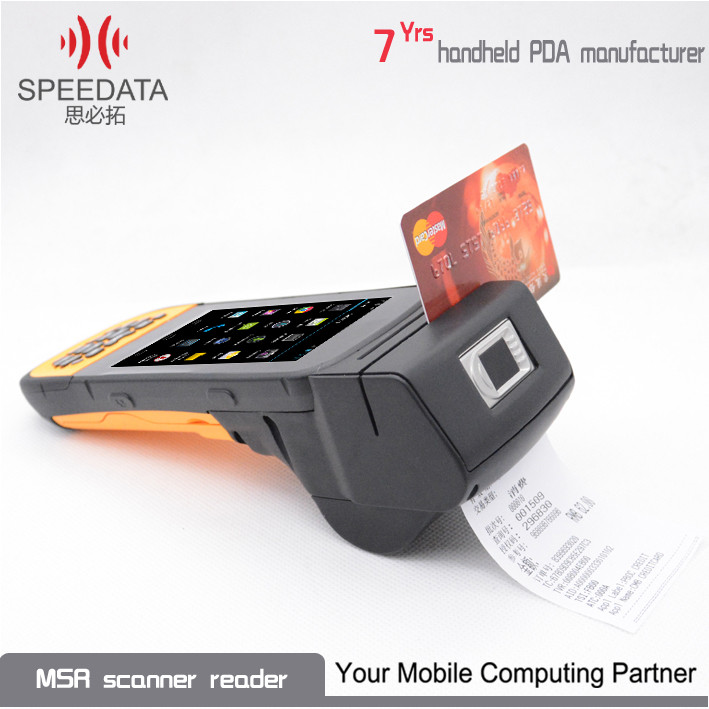

Speedata KT45 blue 4.3inch display industrial rugged PDA terminal
printers all in one
