Grey Industrial Mobile Thermal Printer Wifi Thermal Printer 4500mah Battery

Ask Lasest Price
Brand Name :	Speedata
Model Number :	TT43
Certification :	3C /FCC /ROHS /IP65 /1.5M drop
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10000pcs of Windows Multiple PDA terminal printer
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Grey Industrial Mobile Thermal Printer Wifi Thermal Printer 4500mah Battery

Grey Industrial Mobile Thermal Printer Wifi Thermal Printer 4500mah Battery

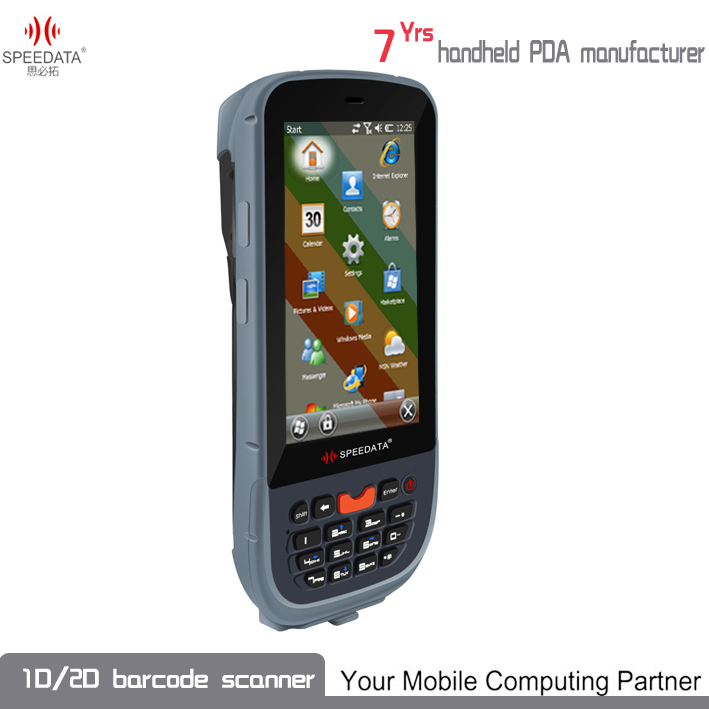

Specifications of TT43 Portable PDA terminal printer
1. 4.5inch high-definition IPS LCD capacitive touch screen to meet your visual enjoyment
2. 500MP camera with high definition ,it's easy to collect all kinds of image information
3. Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc.
4. 3 compatible operating systems , not only to support the market's most fiery Android system,

but also to meet with the Windows CE/Mobile systems, as well as secondary development.

Customers can update the OS of the device to meet their needs and also can support compatibility

function.

Development Environment
Operating System	Windows Mobile 6.1/6.5 (Optional 1)
	Windows CE 6.0 (Optional 2)
	Android 4.0.3
SDK	Software Development Kit
Language	C#, java
Tool	Microsoft Visual Studio 2005

Fundamental Characteristics
CPU	TI AM3715 A8 1Ghz
Memory	512MB DDR RAM + 512MB Frash ROM
Storage	Micro SD/TF card max.32GB expansion
Display	4.5-inch IPS 854*480 (Without Transflective screen)
Display	4-wire resistive touch screen

Communications
WWLAN	Without modem (Optional 1)
WWLAN	Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA ) (Optional 2)
WiFi	JORJIN WG7310 WiFi (802.11 b/g/n)
Bluetooth	JORJIN WG7310 Bluetooth
GPS	UBLOX 6010

Physical Characteristics
Dimensions	1757628mm
Weight	≧400g with battery (according config)
Expansion Slots	2PSAM, 1SIM
Battery	rechargeable li-ion battery 4500mAh 3.7V
	Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
	500-hours standby time, Up to 6-hours calling time, 4-hours charging time
Camera	5MP Camera
Video	Support still image and video capture
Audio	3.5mm 4way plug
Keypad	Front 17keys, Side 4keys
Interfaces	1MicroSD/TF, 1Audio Jack, 1Micro USB, 1Power Jack
Interfaces	USB Host/RS232 interface (Customized)

User Environment
Operating Temp.	-10 to 50℃
Humidity	10%RH - 90%RH (Non-condensing)
Protection class	IP65
Drop resistance level	1.5M

Multiple Functions of TT43 Portable PDA terminal printer

Data device Modules
Barcode scanners (optional )
1D Linear Scanner (Optional)
1D scanner	Symbol SE955 (Optional 1)
	NEWLAND EM1300 (Optional 2)
	Symbol SE4500 (Optional 3)
2D Imager Scanner (Optional)
1D/2D scanner	NEWLAND EM3000 (Optional 1)
1D/2D scanner	Symbol SE4500 (Optional 2)

RFID readers
LF RFID reader	(134.2khz, ISO11784/11785, FDX-B/HDX) (Optional 1)
LF RFID reader	(125KHz) (Optional 2)
HF RFID reader	(13.56MHz ISO 14443A/B ISO 15693)
NFC reader	(include 13.56MHz ISO 14443A ISO 15693)
UHF RFID reader	UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
UHF RFID reader	UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) with PR9200 shipset

Biometric fingerprint (optional )
Fingerprint	UPEK TCS1 (meet the FBI’s FIPS-201) (Optional 1)
Fingerprint	UPEK TCS2SS (Optional 2)

Other Modules (optional )
DGPS	Ublox LEA-6T (with RTK)
PSAM	ISO7816 (SIM card interfance)
MSR	Compatible with one, two, three track. (without PCI, EMV security certification)
IC card reader	ISO7816 ID-1
Printer	Integrate 2 inch Direct thermal line printing
Far Infrared Meter Reading	IEC62056-21 (IEC1107) communication protocol
433Mhz	Require customers to provide 433Mhz wireless modules or specifications
Zigbee	Require customers to provide 433Mhz wireless modules or specifications

TT43 grey Windows Mobile Portable PDA terminal printer all in one with best cheap price
