Products Introduction

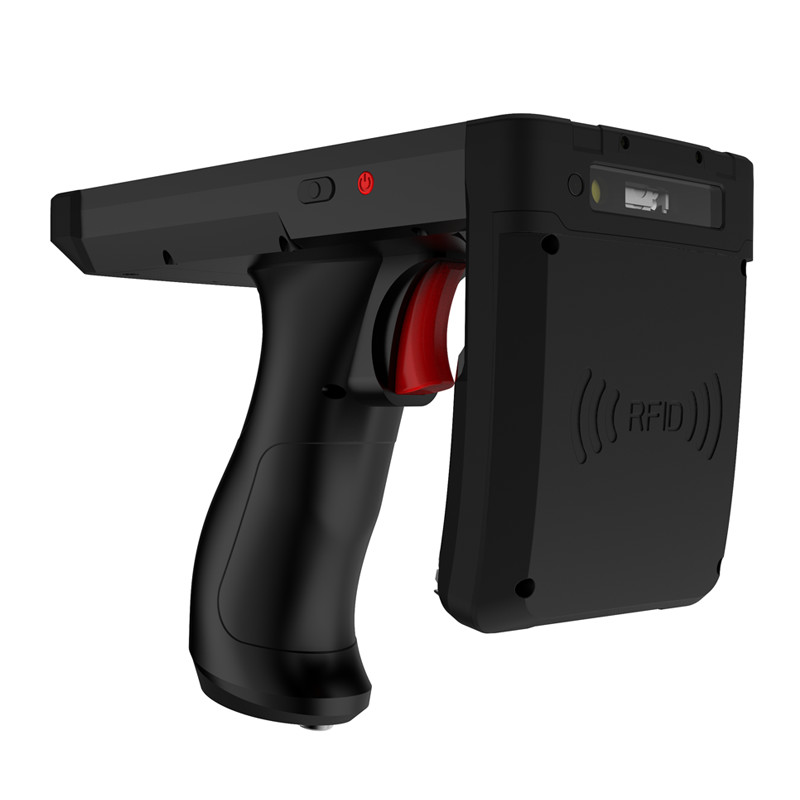

SD60RT is a handheld UHF RFID Reader Data Collection Terminal for
Retail Industry. Unique Pistol Grip Design makes it comfortable and
suitable to hand held for Workers and Operators.
It has High Performance for reading long distance up to 10 meters.
Prducts Features:
1. SD60RT is a handheld UHF RFID Reader Data Collection Terminal
for Retail Industry
2. Unique Pistol Grip Design and Agglomeration Identification
Technology Module, it reaches 10m Long Distance Reading and
Writing.
3. High-sensitivity Antenna and Agglomeration Identification
Technology Module, it reaches 10m Long Distance Reading and
Writing.
4. Built-in 6000mAh Large-capacity Battery and 4000mAh handheld
Backup Battery, it guarantees continuous working for over 12 hours.
It perfectly solves the problem if insufficient endurance ability
for the traditional retail applications.
5.4G/WiFi/Bluetooth/GPS, Dual Sim Card and Dual Standby.
6. IP65 Protection and 1.5M Drop Resistance. |
Specifications
| SD60RT Basic Parameters |
| OS | Android 8.1 |
| CPU | Octa-Core 2.0GHz |
| RAM | 4GB |
| ROM | 64GB |
| Expansion | Micro SD (TF) card slot up to 128GB |
| Keypad | 5 side buttons: 2 volume buttons, 2 function buttons(1 left and
right),1 power button |
| Notification | Sound/vibration/LED prompt |
| Audio | Built-in speaker, Dual silicon mic noise reduction |
| Dimentions | 160mm*80mm*15.8mm(Pistol Grip Length 110mm) |
| Weight( with battery) | 600g |
| Camera |
| Camera | Rear Camera 13MP AF；Front Camera 5MP FF |
| Focus mode | Autofocus ; Front focus |
| Flash | Support single color LED Flash |
| Display |
| Display | 6.0”FHD Screen |
| Resolution | 2160*1080 |
| Touch Panel | 5-point Capacitive Touch Screen |
| Power |
| Battery | Large-capacity Li-ion Battery 6000mAh+Pistol grip complement
battery 4000mAh |
| Charging | PE fast charging, fully charged time< 4 hours |
| Interface | support USB-TypeC, support fast charge, support OTG |
| Communication |
| Bluetooth | BT4.0 BLE |
| WLAN | WiFi 802.11 a/b/g/n 2.4G 5G |
| WWAN | FDD-LTE B1/B3/B5/B7 or B1/B4/B8/B13
TDD-LTE B38/B39//B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0 |
| GPS | GPS,GLONASS,BeiDou,AGPS,option UBLOX8030 |
| Performance |
| Operation Temperature | -20℃ ~60℃ |
|
| Storage Temperature | -30℃ ~+80℃ |
| Humidity | 5%~95%(No condensation) |
| Sealing | IP67 |
| Drop Test | In the operating range, 6 sides can withstand the impact of 1.5
meters
drop to the concrete floor |
| Tumble Test | 6 contact surfaces rolling for 1000 times/ 0.5M |
| ESD | ±15kV Air Discharge, ±8kV Contact Discharge |
| Certificate | CCC,CTA |
| Extensibility |
| NFC RFID Reader | NFC (PN547) : 13.56MHz reader and writer,ISO 14443A/B, ISO 15693
MIFARE |
| Barcode Scanner | 1D/2D : Honeywell N6603 or Speedata SD5670 |
| PSAM | Support |
| Sensor | Geomagnetism, Acceleration, Light Perception Distance, Berometer,
Gyroscope |
Products Details
Speedata Services
As a listed company from china manufacturer, we support you:
Completely Free SDK and technical support for you.
ODM/OEM customization services according to your needs.
13 months warranty for your devices and other parts. and 6 months
for the batteries. Exend warranty,it'll cost 0.5% for each per
year.
Free maintenance of the devices and part of accessories replacement
in the warranty .if out of the warranty, you'll have to pay the
basic cost for them.
FAQ
Question 1: What's your MOQ?
The MOQ of barcode scanner handheld PDA is 1 piece.
Question 2: How long is the delivery time?
The delivery time of barcode scanner goods is different from
quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample Terminal PDA for your
testing.
Question 4: What's the total price for 1 sample?
As a manufacturer of barcode scanner terminal PDA,the more you buy,
the cheaper it'll be.
The sample price is a little bit higher than the common wholesale
price excluding the freight fee.
Question 5: Are you a manufacturer of Handheld PDA?
Yes, we are a R&D orientation China Listed Company, mainly
producing industrial PDA Terminal Hardware and as a software
solutions supplier with over 8 years' OEM/ODM experience. We are
also cooperating with Foxconn Factory.
Question 6: What kind of services do you support ?
We provide you Free SDK and Technical Support for your Barcode
Scanner.
We also provide ODM/OEM Customization Services based to your
demands.
We support 13 months Warranty for all the device and 6 months for
the batteries. Exend warranty, it costs 10% at the first year, and
15% for the second year.
Question 7: What's for payment term and delivery term ?
It's generally 30%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
FOB Shenzhen as Trade Term.
Question 8: Who are your customers?
Our products have been sold to worldwide,especially market in
South/North America, Europe, Asia, Africa Mid-east, etc.
The market share is increasing quickly every year and we get more
and more positive feedbacks from our customers.
