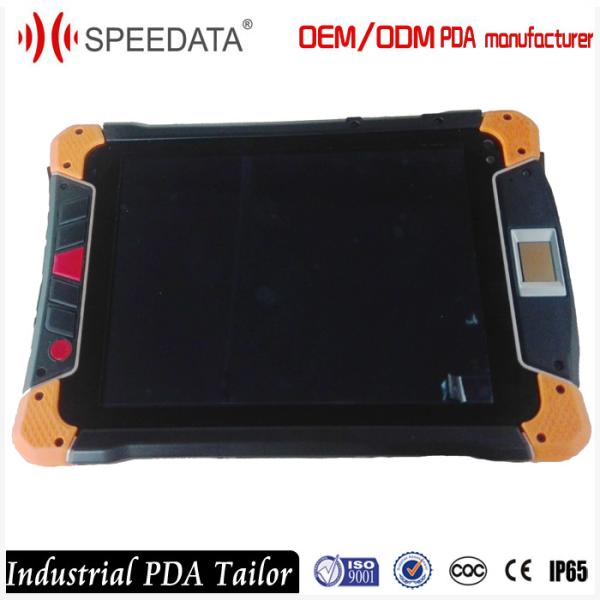

8 Rugged 2D Barcode Scanner Tablet PC Android Fingerprint Reader
Access Control
Biometrics Fingerprint Reader: crossmatch TCS1(With FBI, FIPS-201 ,ISO19794,ANSI,WSQ)
Barcode Scanner: 1D&2D barcode scanner
NFC RFID Reader: 13.56MHz NFC
Android Tablet PC---Operating System Android 5.1:
| OS | Android 5.1 |
| CORE |
| Core | CPU | Eight-core 1.3GHz
ARM® Cortex-A53 |
| WWLAN | FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8 |
| Flash ROM | 16GB |
| RAM | 2GB DDR3 |
General Configuration of Fingerprint Reader Access Control:
| Display | 8 inch IPS 1024*768 |
| touch screen | Multi-point touch capacitive screen |
| GPS | YES |
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) |
| WiFi | 802.11 a/b/g/n |
| Protection class | IP65 |
| Drop resistance level | 1.5m |
| Keypad | Front /Side | 12 keys |
Tablet PC Interface of Fingerprint Reader Access Control:
| Interface | Micro-USB connector | USB2.0 OTG |
| SIM card slot | 2 Micro SIM slot |
| TF card slot | *2 |
| charging | Micro USB + Magnetic charging |
| Audio Jack | *2 |
| External Interface | USB HOST | *1 |
| RS232 | * 2 |
Tablet PC Characteristics Fingerprint Reader Access Control:
| Battery | Type | rechargeable Li-ion battery 6800mAh*2 |
| Standby Time | 600hours |
| Calls Time | Up to 6hours |
| Charging Time | 8 hours (magnetic charging) |
| Physical Characteristics | Dimension | 270*176*20mm |
| Weight | >800g with battery (according config) |
Beijing Speedata Technology Co., Ltd (Stock Code:832442)
Speedatagroup is an OEM/ODM manufacturer of IoT (Internet of Things) Devices and a Provider of Handheld PDA
terminal in hardware and software solution, focusing PDA on 1D/2D Barcode scanner, Fingerprint reader, Portable Printer,
UHF RFID reader, 433M, MSR, ZigBee, PSAM, and IC card reader, MRZ,
IRIS Scanner...
For the past years, Speedata has been rapidly growing as a
high-tech enterprise of R&D, production and sales, and furthermore, having extensive application experiences in the
IOT field. The head office is located in Beijing, with branch
offices in Shanghai, Shenzhen and Dalian.
we have a factory both in Beijing and Tianjing.
We have over 30 professional Senior engineers in R&D department.
We successfully cooperate with Foxconn in Shenzhen
