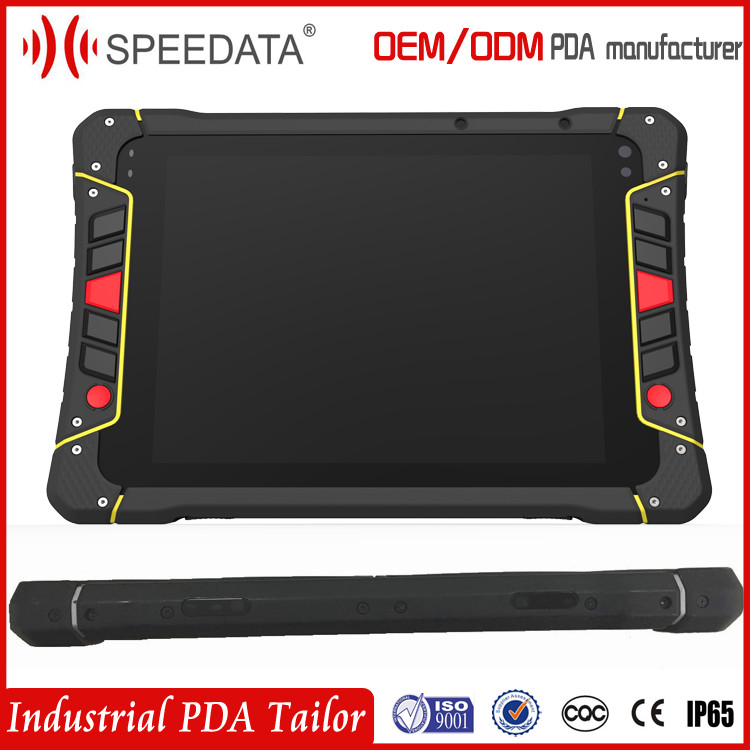

2GB RAM 16GB ROM Rugged Tablets PC / 2D QR Code Hand Barcode
Scanner 1024*768
Quick details of KT80 Tablet:
1, 8 inch high-definition IPS LCD capacitive touch screen to meet
your visual enjoyment
2, 13MP rear camera and 5MP front camera with high definition
3, Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint
reading, MSR, PSAM function etc
4, Android Operation System, More Stable and Reliable,provide
complete SDK and technical support to make further app development
easily
Paraments of KT80 Android Tablet PC:
| android OS |
| OS | Android 5.1 |
| CORE |
| Core | CPU | OCTA-core 1.3GHz
ARM® Cortex-A53 |
| WWLAN | FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8 |
| Flash ROM | 16GB |
| RAM | 2GB DDR3 |
| General Configuration |
| Display | 8 inch IPS 1024*768 |
| touch screen | Multi-point touch capacitive screen |
| GPS | Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) |
| WiFi | 802.11 a/b/g/n |
| Protection class | IP65 |
| Drop resistance level | 1.5m |
| Camera | Rear camera | 13MP Camera |
| Front camera | 5MP Camera |
| Keypad | Front /Side | 12keys |
|
| Interface | Micro-USB connector | USB2.0 OTG |
| SIM card slot | 2 Micro SIM slot |
| TF card slot | *2 |
| charging | Micro USB + Magnetic charging |
| Audio Jack | *2 |
| External Interface | USB HOST | *1 |
| RS232 | * 2 |
|
| Battery | Type | rechargeable Li-ion battery 6800mAh*2 |
| Standby Time | 600hours |
| Calls Time | Up to 6hours |
| Charging Time | 8hours (magnetic charging) |
| Physical Characteristics | Dimension | 270*176*20mm |
| Weight | >800g with battery (according config) |
|
| Operating temperature | -20°C to 50°C / -4°F to 122°F |
| Storage temperature | -30°C to 70°C / -22°F to 158°F |
| Humidity (non-condensed) | Operating 10% to 90% / Storage 5% to 95% |
| Electrostatic discharge | ± 15 kV air discharge, ± 8 kV contact discharge |
| EMC regulation | CE |
| | | | | |
| OPTIONS |
| barcode scanner | option | HoneyWell 1D&2D barcode scanner |
| NFC | option | 13.56MHz NFC |
| IRIS recognition | option | The recognition distance is less than 20cm |
| PSAM | option | ISO7816 (SIM card interfance) |
| Infrared meter reading | option | IEC62056-21(IEC1107) communication protocol |
| Magnetic bracket | option | Apply to car or desktop fixation |
| Wrist strap | option | 360 degree rotation |
| Stylus | option | Capacitance touch pen |
| RFID | option 1 | LF RFID(134.2KHz, ISO11784/11785, FDX-B/HDX) |
| option 2 | LF RFID(125KHz) |
| option 3 | HF RFID(13.56MHz ISO 14443A/B ISO 15693) |
| option 4 | UHF RFID 860-960MHz ISO18000-6C (EPC Gen2) / ISO18000-6A,B
compatibility in direct mode----with R2000 shipset, Long distance
reader. |
| Smart card reader | option | contact SMART card ISO7816 compliant |
| Fingerprint | option1 | crossmatch TCS1(With FBI, FIPS-201 ,ISO19794,ANSI,WSQ) |
| option2 | Other custom fingerprint modules |
| MRZ |
| Other customers custom module. |
Application of KT80 Tablet PC:
Much experience on various fields functions usage:
| 1. Logistics & Express | 2. Transportation
| 3. Electric meter readings
|
4. Cold-chain logistics and transportation tracking
| 5. Storage & Distribution
| 6. Petrochemical inspection
|
7. Logistics & Express
| 8. Product tracking
| 9. Meat product tracking
|
Advantage of KT80 Tablet:
- Our R&D team have experienced software & hardware high tech
engineers, 27% of the whole employees, who have professional
background in Electrical Engineering.
|
- Since its reasonable structure and professional ability,our
products become more stable and compatible.
|
- As expected, we have built up a strong spirit of collaboration
teamwork and gained a good reputation from our customers.
|
